How to display images specific to the selected variant in Shopify Horizon Theme ( FREE METHOD )

Rezwan Al Kaoser
July 12, 2025
Shopify
0 Comments

If you’re using the Shopify Horizon theme and want to show images that change automatically when a customer selects a product variant, you’re in the right place. This guide will walk you through an easy and free way to set this up, no apps needed!

Why Show Variant-Specific Images?

Showing images that match the selected variant helps customers see exactly what they’re buying. It reduces confusion and increases the chances of a sale.

There might be multiple method to do this. But we will be doing it with the easiest method possible. It’s just a simple tweak in the code.
Let’s start –

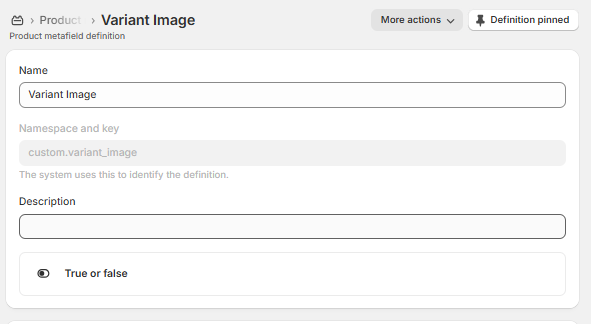

Step 1: Create metafield

Firstly, we will create a product metafield, that will determine if we want to show variant specific product images or not.

Metafield Name: Variant image

Namespace: custom

Type: True or False

Settings > Metafields and metaobjects > Product > Add defination

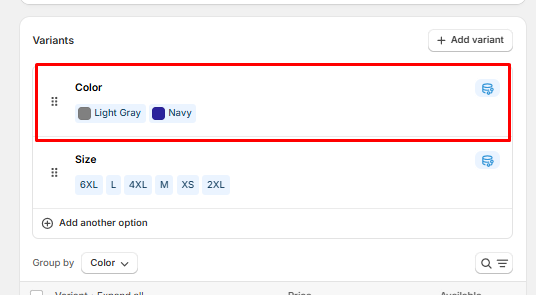

Step 2: Create your variants

Create the product variants. Ensure the variant you want to use for displaying multiple images is placed in the first position.

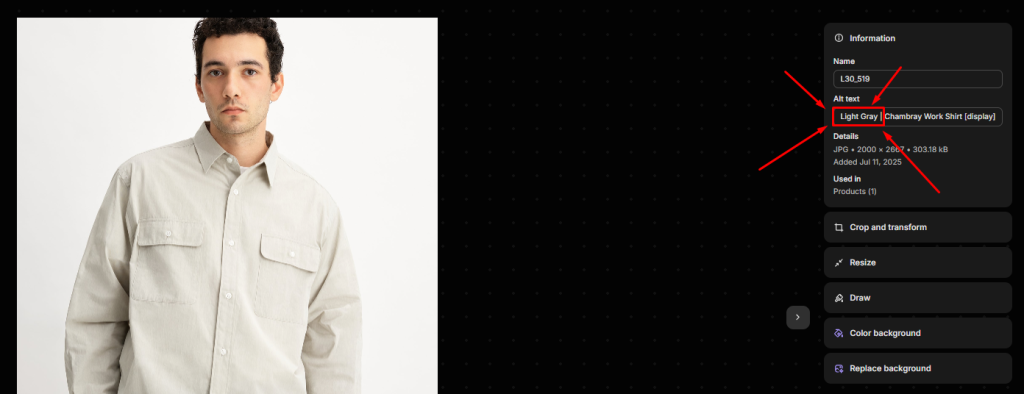

Step 3: Add Your Variant Name in Image Alt

We need to make We need to click on each of the product image and add the variant name on the alt field.

Step 4: Update Code

Go to Online Store > Click on 3 dot > Edit code
Search for _product-media-gallary.liquid file
Remove all of the code and put following codes there


{% # import schema from '../schemas/blocks/_product-media-gallery.js' %}

{%- if block.settings.zoom -%}
  <script
    src="{{ 'zoom-dialog.js' | asset_url }}"
    type="module"
  ></script>
{%- endif -%}

{%- liquid
  assign selected_product = closest.product
  assign selected_variant_media = selected_product.selected_or_first_available_variant.featured_media
  assign first_3d_model = selected_product.media | where: 'media_type', 'model' | first

  if block.settings.hide_variants
    assign variant_images = product.images | where: 'attached_to_variant?', true | map: 'src'
  endif

  if block.settings.slideshow_controls_style == 'thumbnails'
    assign controls_on_media = false
  else
    assign controls_on_media = true
  endif

  assign render_slideshow_controls = false

  if block.settings.media_presentation == 'carousel' or block.settings.slideshow_controls_style == block.settings.slideshow_mobile_controls_style
    assign render_slideshow_controls = true
  endif

  assign render_mobile_slideshow_controls = false

  if block.settings.slideshow_controls_style != block.settings.slideshow_mobile_controls_style
    assign slideshow_controls_class = 'mobile:hidden'

    if block.settings.slideshow_mobile_controls_style != 'hint'
      assign render_mobile_slideshow_controls = true
    endif
  endif

  assign slideshow_controls_style = block.settings.slideshow_controls_style
  # Use a counter instead of dots when there are many images to avoid cropping/overflow.
  if slideshow_controls_style == 'dots' and selected_product.media.size > 15
    assign slideshow_controls_style = 'counter'
  endif

  assign render_slideshow_arrows = false

  if selected_product.media.size <= 1
    assign slideshow_class = 'product-media-gallery__slideshow--single-media slideshow--single-media'
  else
    assign slideshow_class = ''

    if block.settings.media_presentation == 'carousel'
      assign render_slideshow_arrows = true
    endif
  endif

  if slideshow_controls_style == 'thumbnails'
    assign pagination_position = block.settings.thumbnail_position
  else
    assign pagination_position = 'center'
  endif

  # correct discrepancy between position settings for thumbnails and other controls
  if pagination_position == 'bottom'
    assign pagination_position = 'center'
  endif

  assign icons_position = 'center'

  # Put the icons on the opposite side of the pagination controls
  if block.settings.slideshow_controls_position == 'on_media'
    if pagination_position == 'left'
      assign icons_position = 'right'
    elsif pagination_position == 'right'
      assign icons_position = 'left'
    endif
  endif
-%}

{%- liquid
  assign sorted_media = '' | split: ','
  if selected_variant_media
    assign sorted_media = sorted_media | concat: selected_product.media | where: 'id', selected_variant_media.id

    for media in selected_product.media
      if block.settings.hide_variants and variant_images contains media.src and sorted_media.size > 0
        continue
      endif

      if media.id != selected_variant_media.id
        assign found_media = selected_product.media | where: 'id', media.id
        assign sorted_media = sorted_media | concat: found_media
      endif
    endfor
  else
    assign sorted_media = selected_product.media
  endif
  assign has_image_drop = sorted_media | has: 'media_type', 'image'
-%}

{%- if has_image_drop -%}
  <script
    src="{{ 'drag-zoom-wrapper.js' | asset_url }}"
    type="module"
  ></script>
{%- endif -%}

{% style %}
  {% unless block.settings.aspect_ratio == 'adapt' %}
    .product-media-container {
      --media-preview-ratio: {{ block.settings.aspect_ratio }};
    }
  {% endunless %}
{% endstyle %}

<media-gallery
  class="
    spacing-style
    sticky-content
    {% if block.settings.media_presentation == 'grid' %}
      media-gallery--{{ block.settings.media_columns }}-column
      {% if block.settings.media_columns == "two" and block.settings.large_first_image%}media-gallery--large-first-image{% endif %}
    {% endif %}
    media-gallery--{{ block.settings.media_presentation }}
    {% if block.settings.slideshow_mobile_controls_style == 'hint' %}
      media-gallery--hint
    {% endif %}
    {% if block.settings.extend_media %}
      media-gallery--extend
    {% endif %}
  "
  style="{% render 'spacing-style', settings: block.settings %} --thumbnail-width: {{ block.settings.thumbnail_width }}px; --media-radius: {{ block.settings.media_radius }}px;{% if block.settings.icons_style contains 'large' %} --slideshow-icon-padding: 0;{% endif %}--image-gap: {{ block.settings.image_gap }}px;"
  data-presentation="{{ block.settings.media_presentation }}"
  {{ block.shopify_attributes }}
>
  {% assign selected_option_text = product.options_with_values.first.selected_value %}
  {% assign is_variant_img = product.metafields.custom.variant_image %}
  {% capture slides %}
    {% for media in sorted_media %}
      {% capture children %}
          {%- render 'product-media', media: media -%}
      {% endcapture %}
      {% capture class %}
        product-media-container product-media-container--{{ media.media_type }}{% if block.settings.constrain_to_viewport %} constrain-height{% endif %}{% if block.settings.aspect_ratio != 'adapt' %} media-fit{% endif %}{% if block.settings.zoom %} product-media-container--zoomable{% endif %}
      {% endcapture %}
      {% if block.settings.aspect_ratio == 'adapt' %}
        {% capture style %}
          --media-preview-ratio: {{ media.preview_image.aspect_ratio | default: 1.0 }};
        {% endcapture %}
      {% endif %}
      {% if block.settings.zoom and media.media_type == 'model' %}
        {%- capture attributes -%}"{% if settings.transition_to_main_product and forloop.first %} data-view-transition-type="product-image-transition"{% endif %}{% endcapture -%}
      {% elsif block.settings.zoom %}
        {%- capture attributes -%}on:click="#zoom-dialog-{{ block.id }}/open/{{ forloop.index0 }}"{% if settings.transition_to_main_product and forloop.first %} data-view-transition-type="product-image-transition"{% endif %}{% endcapture -%}
      {% endif %}

      {% if is_variant_img and media.alt contains selected_option_text %}
        {% render 'slideshow-slide',
          index: forloop.index,
          children: children,
          class: class,
          style: style,
          attributes: attributes,
        %}
      {% elsif is_variant_img == false or is_variant_img == blank %}
        {% render 'slideshow-slide',
          index: forloop.index,
          children: children,
          class: class,
          style: style,
          attributes: attributes,
        %}
      {% endif %}
    {% endfor %}
  {% endcapture %}

  {% if sorted_media.size > 1 %}
    {% capture controls %}
      {% if render_slideshow_controls %}
        {%- render 'slideshow-controls',
          class: slideshow_controls_class,
          style: slideshow_controls_style,
          item_count: sorted_media.size,
          thumbnails: sorted_media,
          controls_on_media: controls_on_media,
          pagination_position: pagination_position,
          aspect_ratio: block.settings.aspect_ratio
        -%}
      {% endif %}

      {% if render_mobile_slideshow_controls %}
        {%- render 'slideshow-controls',
          class: 'desktop:hidden media-gallery__mobile-controls',
          style: block.settings.slideshow_mobile_controls_style,
          item_count: sorted_media.size,
          controls_on_media: true,
          pagination_position: 'center',
        -%}
      {% endif %}
    {% endcapture %}
  {% endif %}

  {% if render_slideshow_arrows %}
    {% capture slideshow_arrows %}
      {% render 'slideshow-arrows', class: 'mobile:hidden', icon_style: block.settings.icons_style, icon_shape: settings.icons_shape %}
    {% endcapture %}
  {% endif %}

  {% render 'slideshow',
    ref: 'slideshow',
    class: slideshow_class,
    slides: slides,
    slide_count: sorted_media.size,
    slideshow_arrows: slideshow_arrows,
    arrows_position: icons_position,
    controls: controls
  %}

  {% if block.settings.media_presentation == 'grid' %}
    <ul
      class="media-gallery__grid list-unstyled"
      data-testid="media-gallery-grid"
    >
      {% for media in sorted_media %}
        {% if is_variant_img and media.alt contains selected_option_text %}
        <li
          ref="media[]"
          class="
            product-media-container
            product-media-container--{{ media.media_type }}
            {%- if block.settings.constrain_to_viewport %} constrain-height{% endif %}
            {%- if block.settings.aspect_ratio != 'adapt' %} media-fit{% endif %}
          "
          style="{% if block.settings.aspect_ratio == 'adapt' %} --media-preview-ratio: {{ media.preview_image.aspect_ratio | default: 1.0 }};{% endif %}"
          {% if settings.transition_to_main_product and forloop.first %}
            data-view-transition-type="product-image-transition"
          {% endif %}
        >
          {%- if block.settings.zoom and media.media_type == 'image' -%}
            <button
              type="button"
              class="button button-unstyled product-media-container__zoom-button"
              aria-label="{{ 'actions.zoom' | t }}"
              on:click="/zoom/{{ forloop.index0 }}"
            >
              <span class="visually-hidden">{{ 'actions.open_image_in_full_screen' | t }}</span>
            </button>
          {%- endif -%}


          {%- render 'product-media', media: media -%}
        </li>
      {% elsif is_variant_img == false or is_variant_img == blank %}
        <li
          ref="media[]"
          class="
            product-media-container
            product-media-container--{{ media.media_type }}
            {%- if block.settings.constrain_to_viewport %} constrain-height{% endif %}
            {%- if block.settings.aspect_ratio != 'adapt' %} media-fit{% endif %}
          "
          style="{% if block.settings.aspect_ratio == 'adapt' %} --media-preview-ratio: {{ media.preview_image.aspect_ratio | default: 1.0 }};{% endif %}"
          {% if settings.transition_to_main_product and forloop.first %}
            data-view-transition-type="product-image-transition"
          {% endif %}
        >
          {%- if block.settings.zoom and media.media_type == 'image' -%}
            <button
              type="button"
              class="button button-unstyled product-media-container__zoom-button"
              aria-label="{{ 'actions.zoom' | t }}"
              on:click="/zoom/{{ forloop.index0 }}"
            >
              <span class="visually-hidden">{{ 'actions.open_image_in_full_screen' | t }}</span>
            </button>
          {%- endif -%}


          {%- render 'product-media', media: media -%}
        </li>
       {% endif %}
      {% endfor %}
    </ul>
  {% endif %}

  {%- if block.settings.zoom -%}
    <zoom-dialog
      ref="zoomDialogComponent"
      id="zoom-dialog-{{ block.id }}"
    >
      <dialog
        ref="dialog"
        on:keydown="/handleKeyDown"
        scroll-lock
      >
        <button
          type="button"
          class="button button-unstyled close-button dialog-zoomed-gallery__close-button"
          aria-label="{{ 'actions.close' | t }}"
          on:click="/close"
        >
          <span class="visually-hidden">{{ 'actions.close' | t }}</span>
          {{ 'icon-close.svg' | inline_asset_content }}
        </button>
        <div class="dialog-thumbnails-list-container">
          <scroll-hint
            class="dialog-thumbnails-list list-unstyled"
            ref="thumbnails"
          >
            {% if sorted_media.size > 1 %}
              {%- for media in sorted_media -%}
                {% liquid
                  assign aspect_ratio = block.settings.aspect_ratio
                  if block.settings.aspect_ratio == 'adapt'
                    assign aspect_ratio = media.preview_image.aspect_ratio | default: 1.0
                  endif
                %}
                <button
                  type="button"
                  class="button button-unstyled dialog-thumbnails-list__thumbnail"
                  aria-label="{{ 'accessibility.scroll_to' | t: title: media.alt | default: media.media_type }}"
                  on:click="/handleThumbnailClick/{{ forloop.index0 }}"
                  on:pointerenter="/handleThumbnailPointerEnter/{{ forloop.index0 }}"
                  style="--aspect-ratio: {{ aspect_ratio }}; --gallery-aspect-ratio: {{ aspect_ratio }};"
                  {% if forloop.first %}
                    aria-selected="true"
                  {% endif %}
                >
                  {{
                    media.preview_image
                    | image_url: width: 1024
                    | image_tag:
                      loading: 'lazy',
                      sizes: 'auto, 110, (min-width: 750px) 160',
                      widths: '300, 375, 450, 525, 600, 675, 750, 768, 850, 900, 1024',
                      alt: media.alt
                    | escape
                  }}
                </button>
              {%- endfor -%}
            {% endif %}
          </scroll-hint>
        </div>
        <ul
          class="dialog-zoomed-gallery list-unstyled"
        >
          {%- for media in sorted_media -%}
            <li
              id="product-{{ media.id}}-{{ forloop.index }}"
              class="
                product-media-container
                product-media-container--{{ media.media_type }}
                {% if block.settings.constrain_to_viewport %} constrain-height{% endif %}
                {% if block.settings.aspect_ratio != 'adapt' %} media-fit{% endif %}
                {% if media.media_type == 'image' %} product-media-container--zoomable{% endif %}
              "
              style="{% if block.settings.aspect_ratio == 'adapt' %} --media-preview-ratio: {{ media.preview_image.aspect_ratio | default: 1.0 }};{% endif %}"
              ref="media[]"
              {% if media.media_type == 'image' %}
                on:click="/close"
              {% endif %}
            >
              {% if media.media_type == 'image' %}
                <drag-zoom-wrapper class="product-media__drag-zoom-wrapper">
                  {%- render 'product-media', media: media -%}
                </drag-zoom-wrapper>
              {% else %}
                {%- render 'product-media', media: media -%}
              {% endif %}
            </li>
          {%- endfor -%}
        </ul>
      </dialog>
    </zoom-dialog>
  {%- endif -%}

  {%- if first_3d_model -%}
    <link
      id="ModelViewerStyle"
      rel="stylesheet"
      href="https://cdn.shopify.com/shopifycloud/model-viewer-ui/assets/v1.0/model-viewer-ui.css"
      media="print"
      onload="this.media='all'"
    >
    <script>
      window.ProductModel = {
        loadShopifyXR() {
          Shopify.loadFeatures([
            {
              name: 'shopify-xr',
              version: '1.0',
              onLoad: this.setupShopifyXR.bind(this),
            },
          ]);
        },

        setupShopifyXR(errors) {
          if (errors) return;

          if (!window.ShopifyXR) {
            document.addEventListener('shopify_xr_initialized', () => this.setupShopifyXR());
            return;
          }

          document.querySelectorAll('[id^="ProductModelJSON-"]').forEach((modelJSON) => {
            window.ShopifyXR.addModels(JSON.parse(modelJSON.textContent));
            modelJSON.remove();
          });
          window.ShopifyXR.setupXRElements();
        },
      };

      window.ProductModel.loadShopifyXR();
    </script>
  {%- endif -%}
</media-gallery>

{% stylesheet %}
  .dialog-zoomed-gallery {
    cursor: zoom-out;
  }

  .dialog--preloading {
    opacity: 0;
  }

  .product-media__drag-zoom-wrapper {
    aspect-ratio: inherit;
    min-height: inherit;
    min-width: inherit;
    display: inherit;
    flex: inherit;
  }

  @media screen and (max-width: 749px) {
    .dialog-zoomed-gallery {
      /* Prevent scroll wheel or swipe scrolling */
      overscroll-behavior: none;
      scrollbar-width: none;
      display: flex;
      scroll-snap-type: x mandatory;
      overflow-x: hidden;
      scroll-behavior: smooth;
      height: 100%;

      &::-webkit-scrollbar {
        display: none;
      }
    }

    .dialog-zoomed-gallery .product-media-container {
      flex: 0 0 100%;
      scroll-snap-align: start;
      position: relative;
    }

    .dialog-zoomed-gallery .product-media-container--image .product-media {
      aspect-ratio: auto;
      height: 100%;
      width: 100%;
      overflow: hidden;
    }

    .dialog-zoomed-gallery .product-media-container--video,
    .dialog-zoomed-gallery .product-media-container--external_video {
      align-content: center;
    }

    .dialog-zoomed-gallery
      :is(.product-media-container--video, .product-media-container--external_video, .product-media-container--model)
      .product-media {
      aspect-ratio: auto;
      align-items: center;
      height: 100%;

      .product-media__image {
        height: 100%;
      }
    }

    .product-media__drag-zoom-wrapper {
      display: flex;
      aspect-ratio: auto;
      height: 100%;
      width: 100%;
      overflow: scroll;
      scrollbar-width: none;
      justify-content: center;

      &::-webkit-scrollbar {
        display: none;
      }
    }

    .product-media__drag-zoom-wrapper .product-media__image {
      --product-media-fit: contain;
      overflow: hidden;
      transform: scale(var(--drag-zoom-scale))
        translate(var(--drag-zoom-translate-x, 0), var(--drag-zoom-translate-y, 0));
    }

    .media-gallery--hint {
      --slideshow-gap: var(--gap-2xs);

      :not(.dialog-zoomed-gallery) > .product-media-container:not(:only-child) {
        width: 90%;

        .product-media img {
          object-fit: cover;
        }
      }
    }
  }

  .dialog-zoomed-gallery__close-button {
    border-radius: 50%;
    color: white;
    mix-blend-mode: difference;
    z-index: var(--layer-raised);
  }

  .media-gallery__mobile-controls {
    grid-area: auto;
  }

  .dialog-zoomed-gallery .product-media-container--zoomable.product-media-container--image {
    cursor: zoom-out;
  }

  .product-media-container--zoomable.product-media-container--image {
    cursor: zoom-in;
  }

  .dialog-zoomed-gallery .product-media-container--video deferred-media,
  .dialog-zoomed-gallery .product-media-container--external_video deferred-media {
    height: auto;
    aspect-ratio: var(--ratio);
  }

  .dialog-zoomed-gallery .product-media-container--model .product-media__image {
    /* Make the height match the height of the model-viewer */
    height: 100vh;
  }
{% endstylesheet %}

{% schema %}
{
  "name": "t:names.product_media",
  "tag": null,
  "settings": [
    {
      "type": "select",
      "id": "media_presentation",
      "label": "t:settings.type",
      "options": [
        {
          "value": "grid",
          "label": "t:options.grid"
        },
        {
          "value": "carousel",
          "label": "t:options.carousel"
        }
      ],
      "default": "grid",
      "info": "t:info.carousel_layout_on_mobile"
    },
    {
      "type": "header",
      "content": "t:content.grid",
      "visible_if": "{{ block.settings.media_presentation == 'grid' }}"
    },
    {
      "type": "select",
      "id": "media_columns",
      "label": "t:settings.columns",
      "options": [
        {
          "value": "one",
          "label": "t:options.one_number"
        },
        {
          "value": "two",
          "label": "t:options.two_number"
        }
      ],
      "default": "one",
      "visible_if": "{{ block.settings.media_presentation == 'grid' }}"
    },
    {
      "type": "range",
      "id": "image_gap",
      "label": "t:settings.gap",
      "min": 0,
      "max": 100,
      "unit": "px",
      "step": 1,
      "default": 0,
      "visible_if": "{{ block.settings.media_presentation == 'grid' }}"
    },
    {
      "type": "checkbox",
      "id": "large_first_image",
      "label": "t:settings.full_width_first_image",
      "default": false,
      "visible_if": "{{ block.settings.media_presentation == 'grid' and block.settings.media_columns == 'two' }}"
    },
    {
      "type": "header",
      "content": "t:content.carousel"
    },
    {
      "type": "select",
      "id": "icons_style",
      "label": "t:settings.icons",
      "options": [
        {
          "value": "arrow",
          "label": "t:options.arrows"
        },
        {
          "value": "chevron",
          "label": "t:options.chevrons"
        },
        {
          "value": "arrows_large",
          "label": "t:options.large_arrows"
        },
        {
          "value": "chevron_large",
          "label": "t:options.large_chevrons"
        }
      ],
      "default": "arrow",
      "visible_if": "{{ block.settings.media_presentation == 'carousel' }}"
    },
    {
      "type": "select",
      "id": "slideshow_controls_style",
      "label": "t:settings.pagination",
      "options": [
        {
          "value": "dots",
          "label": "t:options.dots"
        },
        {
          "value": "counter",
          "label": "t:options.counter"
        },
        {
          "value": "thumbnails",
          "label": "t:options.thumbnails"
        }
      ],
      "visible_if": "{{ block.settings.media_presentation == 'carousel' }}"
    },
    {
      "type": "select",
      "id": "slideshow_mobile_controls_style",
      "label": "t:settings.mobile_pagination",
      "options": [
        {
          "value": "dots",
          "label": "t:options.dots"
        },
        {
          "value": "counter",
          "label": "t:options.counter"
        },
        {
          "value": "hint",
          "label": "t:options.hint"
        }
      ]
    },
    {
      "type": "header",
      "content": "t:content.thumbnails",
      "visible_if": "{{ block.settings.media_presentation == 'carousel' and block.settings.slideshow_controls_style == 'thumbnails' }}"
    },
    {
      "type": "select",
      "id": "thumbnail_position",
      "label": "t:settings.position",
      "options": [
        {
          "value": "left",
          "label": "t:options.left"
        },
        {
          "value": "bottom",
          "label": "t:options.bottom"
        },
        {
          "value": "right",
          "label": "t:options.right"
        }
      ],
      "default": "bottom",
      "visible_if": "{{ block.settings.media_presentation == 'carousel' and block.settings.slideshow_controls_style == 'thumbnails' }}"
    },
    {
      "type": "range",
      "id": "thumbnail_width",
      "label": "t:settings.width",
      "min": 44,
      "max": 72,
      "step": 1,
      "unit": "px",
      "default": 64,
      "visible_if": "{{ block.settings.media_presentation == 'carousel' and block.settings.slideshow_controls_style == 'thumbnails' }}"
    },
    {
      "type": "header",
      "content": "t:content.media"
    },
    {
      "type": "select",
      "id": "aspect_ratio",
      "label": "t:settings.aspect_ratio",
      "options": [
        {
          "value": "adapt",
          "label": "t:options.auto"
        },
        {
          "value": "1/1.25",
          "label": "t:options.portrait"
        },
        {
          "value": "1",
          "label": "t:options.square"
        },
        {
          "value": "2/1",
          "label": "t:options.landscape"
        }
      ],
      "default": "adapt"
    },
    {
      "type": "range",
      "id": "media_radius",
      "label": "t:settings.border_radius",
      "min": 0,
      "max": 32,
      "step": 1,
      "unit": "px",
      "default": 4
    },
    {
      "type": "checkbox",
      "id": "extend_media",
      "label": "t:settings.extend_media_to_screen_edge",
      "default": true,
      "visible_if": "{{ section.settings.content_width == 'content-center-aligned' }}"
    },
    {
      "type": "checkbox",
      "id": "constrain_to_viewport",
      "label": "t:settings.limit_media_to_screen_height",
      "default": false
    },
    {
      "type": "checkbox",
      "id": "zoom",
      "label": "t:settings.enable_zoom",
      "default": true
    },
    {
      "type": "checkbox",
      "id": "video_loop",
      "label": "t:settings.enable_video_looping",
      "default": false
    },
    {
      "type": "checkbox",
      "id": "hide_variants",
      "default": false,
      "label": "t:settings.hide_unselected_variant_media"
    },
    {
      "type": "header",
      "content": "t:content.padding"
    },
    {
      "type": "range",
      "id": "padding-block-start",
      "label": "t:settings.top",
      "min": 0,
      "max": 100,
      "step": 1,
      "unit": "px",
      "default": 0
    },
    {
      "type": "range",
      "id": "padding-block-end",
      "label": "t:settings.bottom",
      "min": 0,
      "max": 100,
      "step": 1,
      "unit": "px",
      "default": 0
    },
    {
      "type": "range",
      "id": "padding-inline-start",
      "label": "t:settings.left",
      "min": 0,
      "max": 100,
      "step": 1,
      "unit": "px",
      "default": 0
    },
    {
      "type": "range",
      "id": "padding-inline-end",
      "label": "t:settings.right",
      "min": 0,
      "max": 100,
      "step": 1,
      "unit": "px",
      "default": 0
    }
  ],
  "presets": [
    {
      "name": "t:names.product_media"
    }
  ]
}
{% endschema %}

<br><br>
